99.999% Purity Yttrium Oxide Powder (Y2O3) for Thermal Spray Grade Plasma Resistant Coating in Semiconductor Chambers
Productdetails:
| Plaats van herkomst: | Jiangxi, China |
| Merknaam: | High Broad |
| Certificering: | ISO 9001:2015, REACH |
| Modelnummer: | Y2O3-5N |
Betalen & Verzenden Algemene voorwaarden:
| Min. bestelaantal: | 1000kilogram |
|---|---|
| Prijs: | USD 5-100 / Kilogram |
| Verpakking Details: | Vacuümverzegelde binnenzak met buitenzak van aluminiumfolie, verpakt in vezelvaten van 25 kg of volg |
| Levertijd: | 5-15 werkdagen na orderbevestiging |
| Betalingscondities: | T/T,L/C,PayPal,Western Union |
| Levering vermogen: | 500000 kilogram per maand |
|
Gedetailleerde informatie |
|||
| Dikte: | 5,01 g/cm³ | specifieke oppervlakte: | 8-15 m²/g |
|---|---|---|---|
| Deeltjesgrootte: | 1-5 μm | Smeltpunt: | 2425 °C |
| Kristalstructuur: | Kubiek | Zuiverheid: | 990,999% (5N) |
| Markeren: | 5N Yttrium Oxide Powder,Thermal Spray Coating Grade,Semiconductor Chamber Protection |
||
Productomschrijving

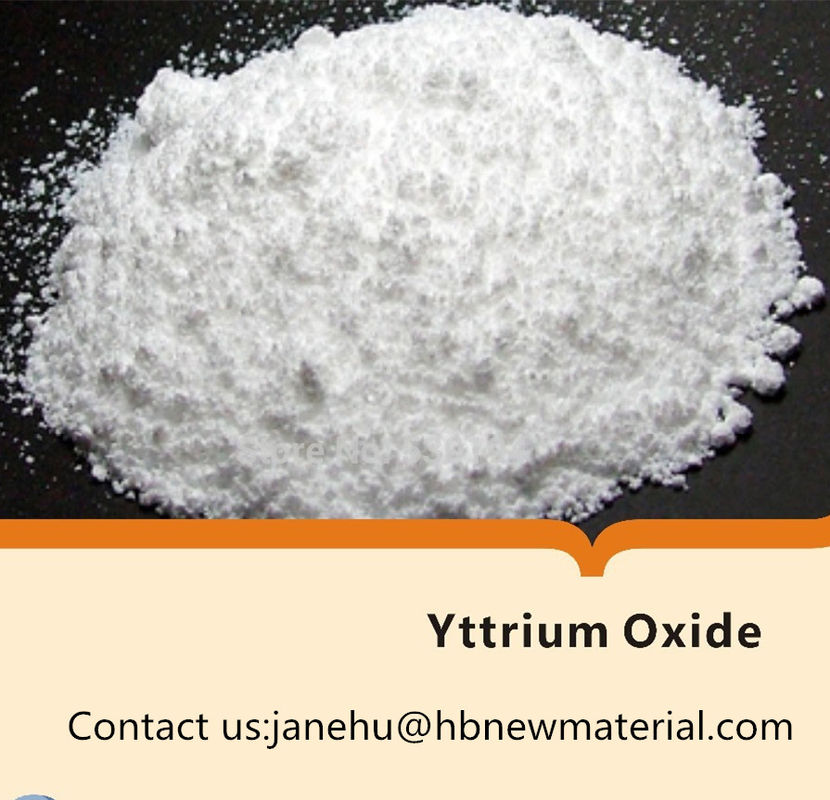

99.999% (5N) Yttrium Oxide (Y₂O₃) Thermal Spray Grade Powder
Our 99.999% (5N) yttrium oxide powder is manufactured in China using advanced rare earth extraction and purification technology. This thermal spray grade Y₂O₃ powder is specifically engineered for thermal spray coating of semiconductor chamber components, delivering exceptional consistency and performance in demanding industrial coating environments.
Key Features
- Ultra-high 99.999% (5N) purity for minimal contamination in sensitive semiconductor processes
- Optimized particle size distribution (1-5 μm D50) for consistent thermal spray deposition
- Excellent plasma etch resistance extends chamber component service life by 3-5x
- High melting point (2425°C) ensures coating stability under extreme thermal cycling
- Low impurity levels of Fe, Na, Ca, Si ensure coating purity and dielectric integrity
Technical Specifications
| Parameter | Specification |
|---|---|
| Purity | 99.999% (5N) |
| Particle Size D50 | 1-5 μm |
| Crystal Structure | Cubic |
| CAS Number | 1314-36-9 |
| Appearance | White Powder |
| Density | 5.01 g/cm³ |
| Melting Point | 2425 °C |
| Specific Surface Area | 8-15 m²/g |
Recommended Applications
This yttrium oxide powder is widely used in thermal spray coating, plasma spray deposition, ceramic surface treatment, and other industrial coating processes requiring high purity rare earth materials. Its excellent thermal stability, chemical resistance, and plasma etch resistance make it ideal for protective coatings in harsh operating environments.
Packaging & Storage

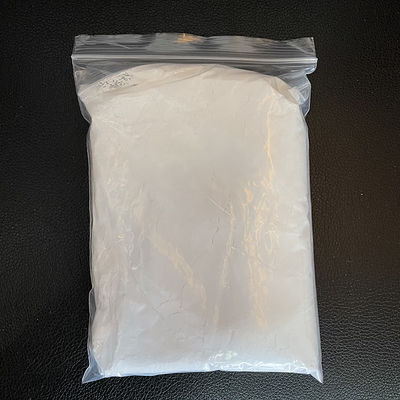

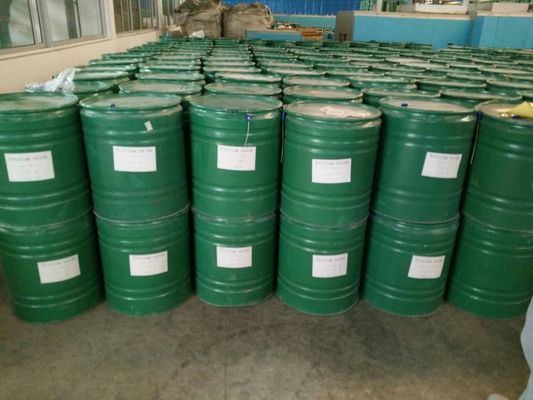

Vacuum sealed inner bag with aluminum foil outer layer to prevent moisture absorption. Packed in 25kg fiber drums with desiccant. Store in a cool, dry place away from acids and moisture.
