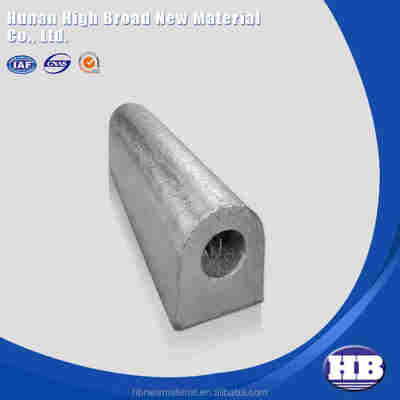

Low Potential High Potential Customized Shape AZ63 Magnesium Anode for Cathodic Protection Systems
Productdetails:
| Plaats van herkomst: | Hunan, China |
| Merknaam: | HIGH BROAD Magnesium anode manufacture |
| Modelnummer: | az31 az63 MgMN HOOG POTENTIEEL OF LAAG POTENTIEEL |
Betalen & Verzenden Algemene voorwaarden:
| Min. bestelaantal: | 100 |
|---|---|
| Prijs: | $6-7 |
|
Gedetailleerde informatie |
|||
| Chemische samenstelling: | Magnesium Aluminium Zink | Materiaal: | magnesiumlegering |
|---|---|---|---|
| Vorm: | Aangepast | Aluminium inhoud: | 5,30-6,70% |
| Zinkinhoud: | 2,50-3,50% | Mangaaninhoud: | 0,15-0,70% |
| Siliciumgehalte: | ≤0,30% | Koperinhoud: | ≤0,10% |
| Nikkelinhoud: | ≤0.003% | IJzergehalte: | ≤0,005% |
| Open-circuit voltage: | 1,50-1,75V | Sluitcircuitspanning: | 1,45-1,62V |
| Werkelijke capaciteit: | ≥1.100 Ah/g | Huidige efficiëntie: | ≥50% |
| Potentieeltype: | Hoog/laag potentieel | ||
| Markeren: | Low Potential Magnesium Anode,High Potential Sacrificial Anode,Customized Shape AZ63 Magnesium Anode |
||
Productomschrijving
ASTM standard produced and tested aluminum or magnesium anode for buried applications in cathodic protection systems.
| Name | AZ63 Magnesium Anode |
|---|---|
| Application | Anti corrosion Magnesium Alloy Sacrificial Anode |
| Material | AZ63, Low potential mg anode Mg-Mn, high potential mg anode |
| Product Keywords | aluminum or magnesium anode |
The corrosion of metal material in sea, lake or soil environments can be prevented using electrochemical cathodic protection with magnesium anodes. By connecting the negative current of metal material or alloy with the protected metal body, protective current is transferred as the anode material dissolves, preventing corrosion. This method is widely used in ship building, port construction, marine work, underground pipelines, petrochemical, power plants, and municipal applications.
| Element | High Potential | AZ63B | AZ63C | AZ63D |
|---|---|---|---|---|
| Al | <0.01 | 5.30-6.70 | 5.30-6.70 | 5.0-7.0 |
| Zn | --- | 2.50-3.50 | 2.50-3.50 | 2.0-4.0 |
| Mn | 0.5-1.30 | 0.15-0.70 | 0.15-0.07 | 0.15-0.70 |
| Si (max) | 0.05 | 0.10 | 0.30 | 0.30 |
| Cu (max) | 0.02 | 0.02 | 0.05 | 0.10 |
| Ni (max) | 0.001 | 0.002 | 0.003 | 0.003 |
| Fe (max) | 0.03 | 0.005 | 0.005 | 0.005 |
| Mg | Balance | Balance | Balance | Balance |
| Item | Open-circuit Voltage (-V) | Close-circuit Voltage (-V) | Actual Capacitance (A.h/g) | Current Efficiency (%) |
|---|---|---|---|---|
| High Potential | 1.70-1.75 | 1.57-1.62 | ≥ 1.100 | ≥ 50 |
| Low Potential (AZ63) | 1.50-1.55 | 1.45-1.50 | ≥ 1.105 | ≥ 50 |
Note: Open and Close-circuit voltage is relative to Saturated Calomel Electrode (SCE)
We represent a large anode plant in China, specializing in magnesium, aluminum, and zinc anodes. Our products are exported primarily to Canada and USA, with annual shipments of approximately 3000 metric tons. Our products undergo regular independent third-party testing in the USA to ensure consistent high quality. With direct access to raw material resources, we offer competitive pricing while maintaining superior product standards.
We are confident in our ability to meet your requirements and become a top-ranked supplier for your company.
Package: On pallet
Delivery Time: 3-20 days after confirming order. Exact delivery date depends on production season and order quantity.
